Case/Gig Bag
Deluxe Hardshell
Included Accessories
Deluxe Hardshell Case, Strap and Certificate of Authenticity.

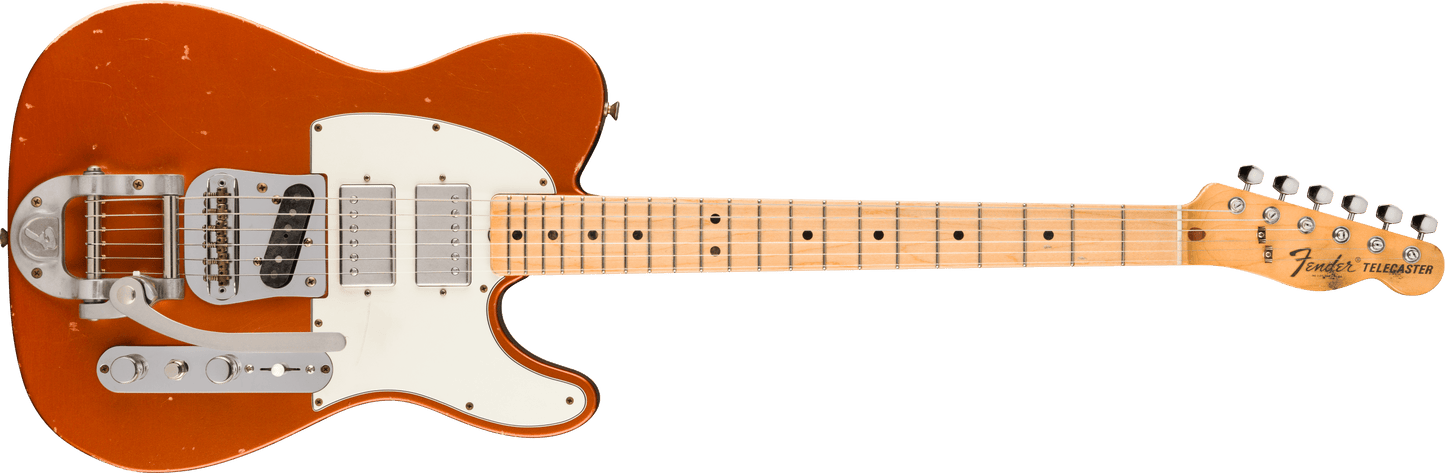

Limited Edition Masterbuilt Mike Campbell 1972 "Red Dog" Telecaster®
Limited Edition Masterbuilt Mike Campbell 1972 "Red Dog" Telecaster®
Limited Edition Masterbuilt Mike Campbell 1972 "Red Dog" Telecaster®
Details
Beschrijving
Overzicht
With raw, powerful riffs and explosive leads, Mike Campbell firmly established himself as one of the greatest guitarists and songwriters in music history—and throughout his accomplished career, Fender guitars played in integral role in his creative expression. One of his most noteworthy instruments was his modified three-pickup Telecaster® that would come to be known as the “Red Dog.”
Fender Custom Shop Senior Masterbuilder Dennis Galuszka partnered with Mike to recreate this incredible guitar. From beautifully faded red metallic finish to the worn and Bigsby B5 vibrato tailpiece, every nick, ding and scratch was meticulously replicated to bring this tribute guitar to life.

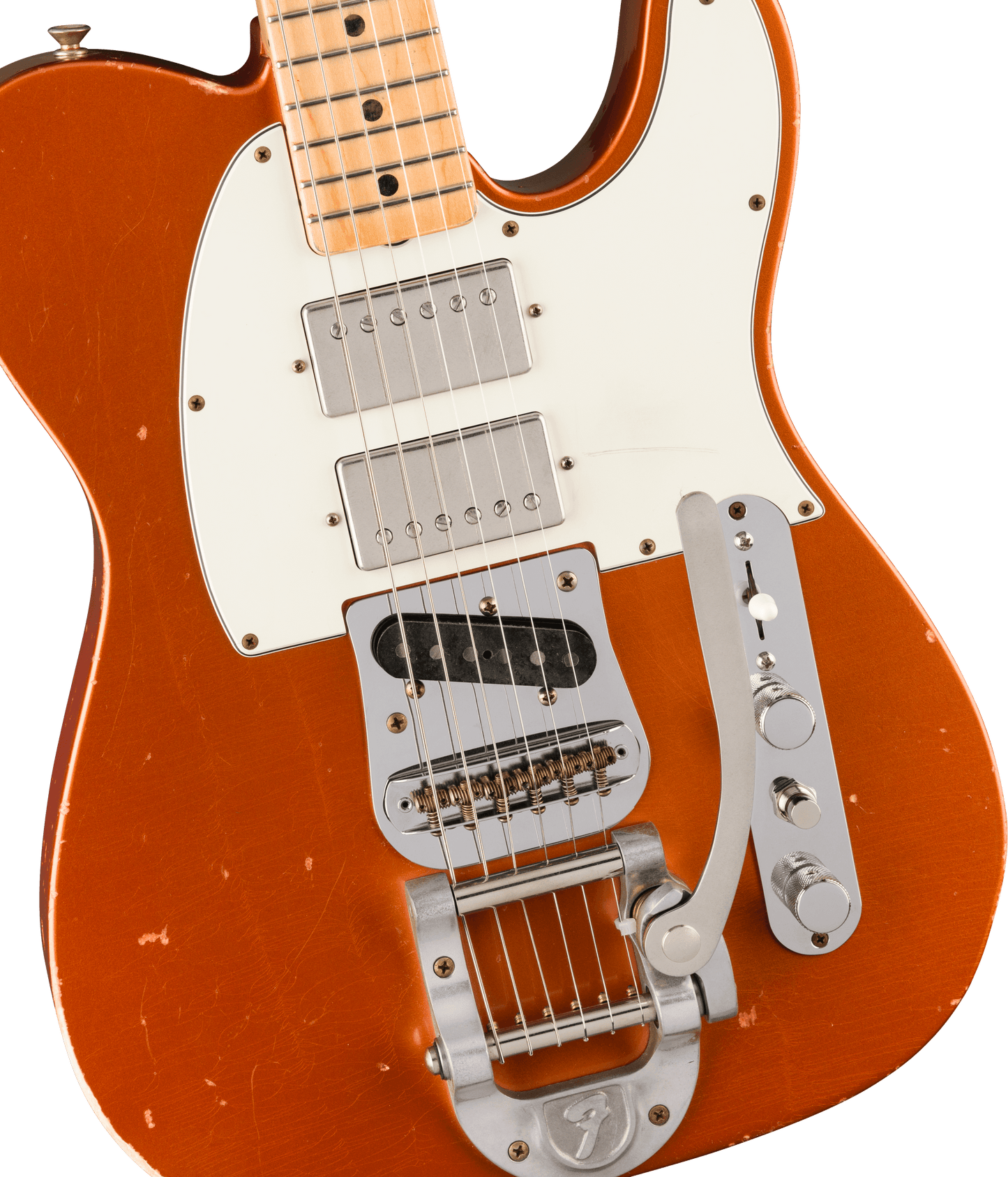

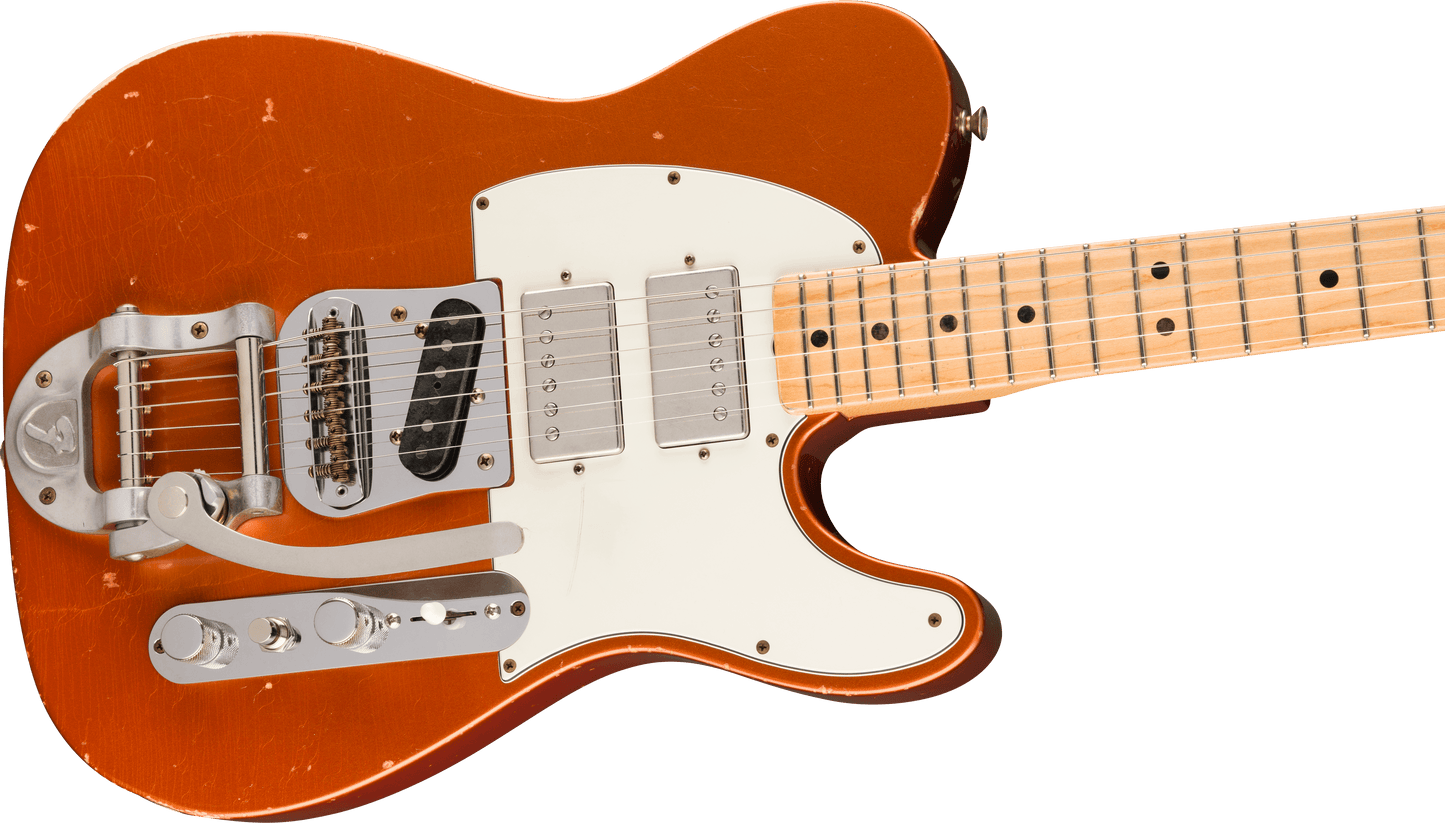

Loaded with vintage replica Arcane, Inc. pickups and a “Destruct” boost circuit wired by Analogman, this early-‘70s Tele® plays, sounds and feels just like the guitar heard on “Refugee.” Its two-piece select alder body and custom-shaped, one-piece maple neck feature a well-loved Relic® lacquer finish, while the hardware is aged to look like it’s been played for the last five decades.
Wonderfully unique and with a storied past, the Limited Edition Masterbuilt Mike Campbell 1972 “Red Dog” Telecaster® is a fitting homage to such and incredibly captivating and inspiring musician.
Other premium features include flat sawn maple neck with custom Oval “C” back-shape, 7.25" (184.1 mm) radius, 21 vintage upgrade (45085) frets, 5-way switch, 3-ply parchment pickguard, vintage-style Jazzmaster® bridge with threaded steel saddles, vintage-style “F”-stamped tuning machines, bone nut, two American Vintage '65 string trees with nylon spacers, deluxe hardshell case, strap and certificate of authenticity.
Accessories
Body
Body
Select Alder
Body Finish
WLS Undercoat
Body Material
Select Alder
Body Shape
Telecaster®
Electronics
Auxiliary Switching
Push-Push Button on Control Plate activates "Destruct" Boost Circuit
Bridge Pickup
Custom-Voiced Arcane, Inc. Telecaster Single-Coil®
Controls
Master Volume, Master Tone, "Destruct" Button
Middle Pickup
Custom-Voiced Arcane, Inc. Humbucker
Neck Pickup
Custom-Voiced Arcane, Inc. Humbucker
Pickup Configuration
SHH
Special Electronics
"Destruct" Boost Circuit by Analogman
Switching
5-Position Blade: Position 1. Bridge Pickup, Position 2. Bridge and Middle Pickup, Position 3. Middle Pickup, Position 4. Middle and Neck Pickup, Position 5. Neck Pickup
General
Color
Faded Aged Candy Cola
Orientation
Right-Hand
Product Name
Limited Edition Masterbuilt Mike Campbell 1972 “Red Dog” Telecaster®
Series
Masterbuilt
Hardware
Bridge
Fender/Bigsby® B5 Bridge and Tailpiece
Control Knobs
Knurled Dome
Hardware Finish
Nickel/Chrome
Neck Plate
4-Bolt with "F" Logo, Serialized
Pickguard
3-Ply Parchment
Strap Buttons
Vintage-Style
String Trees
Dual-Wing with Nylon Spacer
Strings
Nickel Plated Steel (.010-.046 Gauges)
Switch Tip
Parchment

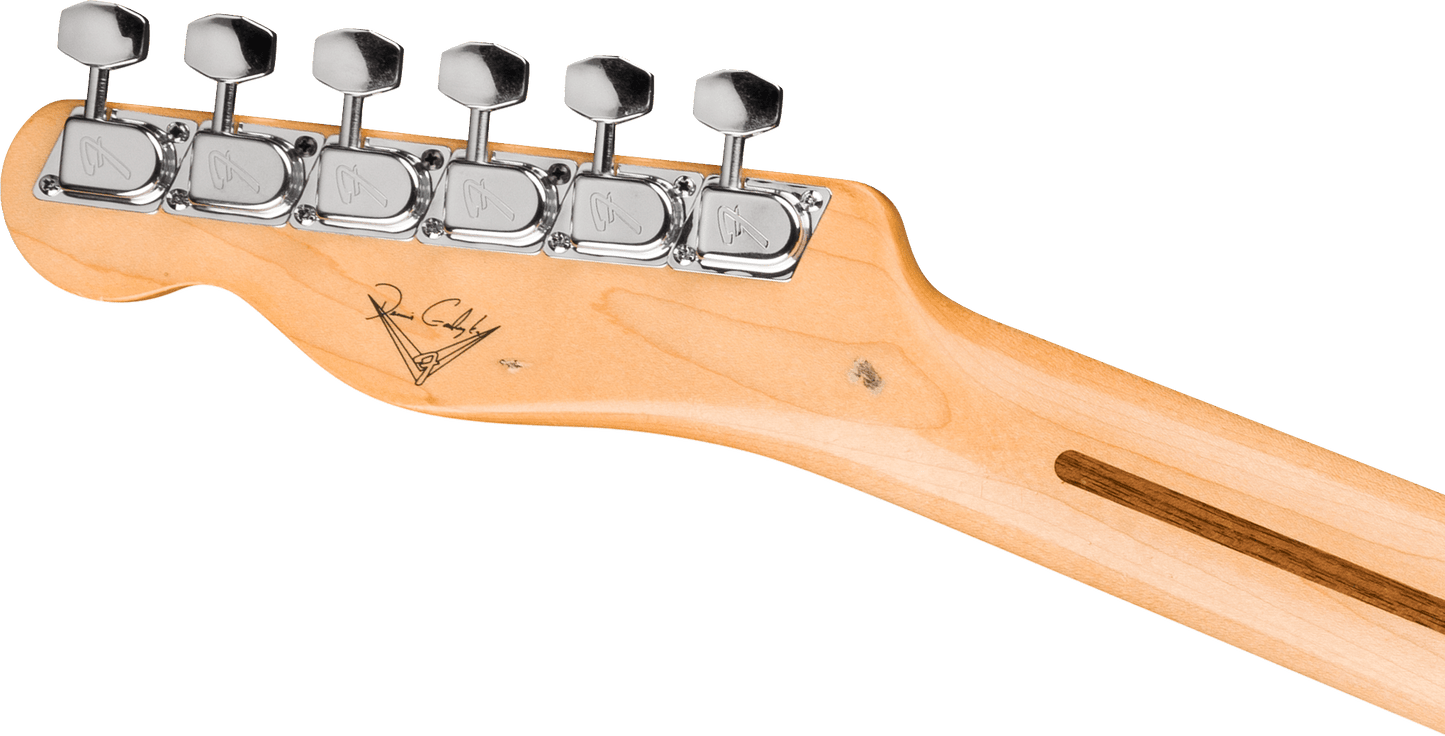

Tuning Machines
Fender® Vintage "F" Stamped
Measurements
Fret Size
Vintage
Headstock Thickness
0.575"
Scale Length
25.5" (648 mm)
Neck
Fingerboard Material
None - 1-Piece Maple Neck
Fingerboard Radius
7.25" (184.1 mm)

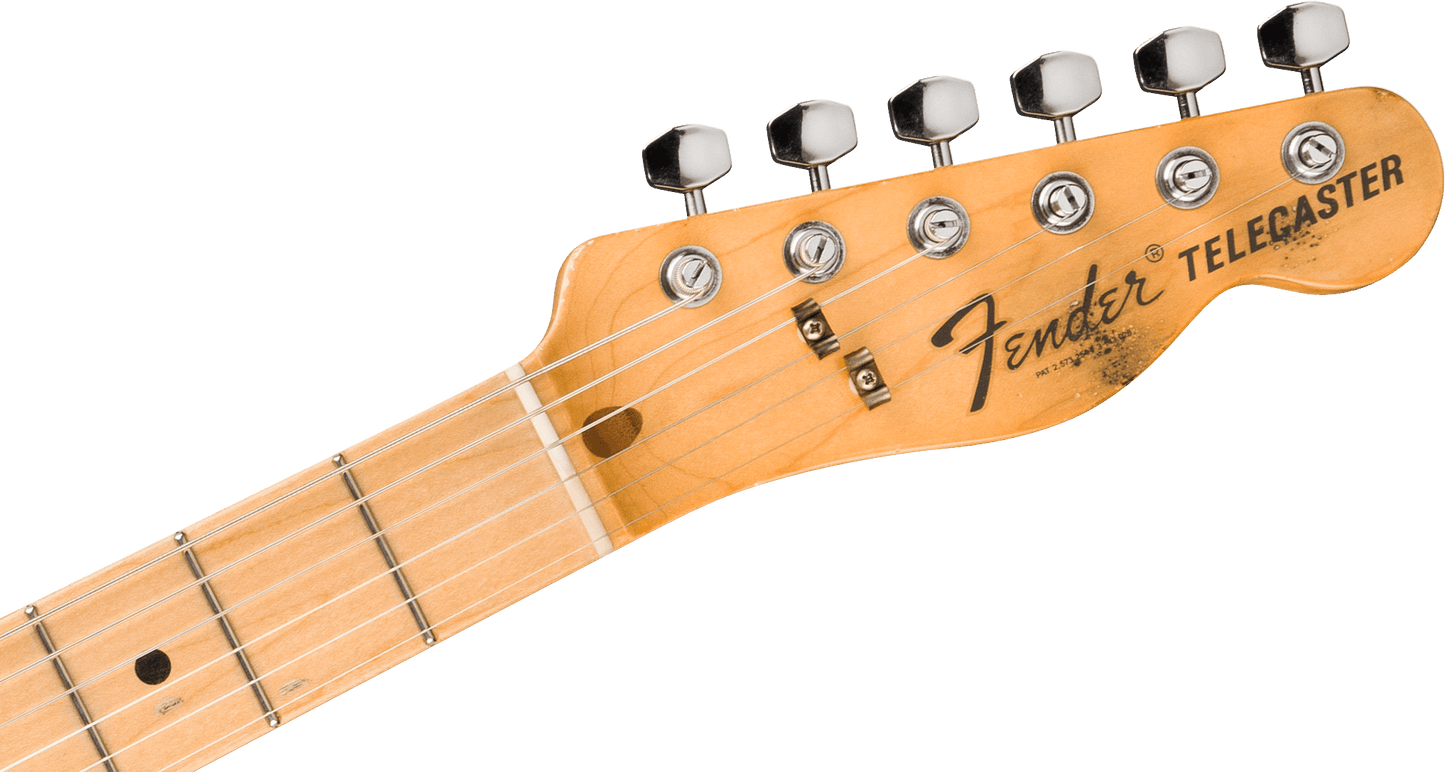

Headstock
Telecaster®
Neck Butt Width
.934"
Neck Finish
Nitrocellulose Lacquer
Neck Material
1-Piece Maple
Neck Shape
'60s Oval "C"
Neck Thickness
.814"
Neck Thickness 12th Fret
.920"
Number of Frets
21
Nut Material
Bone
Nut Width
1.60” (40.6 mm)
Position Inlays
Black Micarta Dot - 7 mm
Side Dots
Black
String Nut
Bone
Truss Rod
Vintage-Style Butt Adjust
